CRS-300 multi-functional test bench for diesel fuel injection pump common rail system EUI EUP stand

FOB Reference Price:Get Latest Price
US $8,000-9,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
200 Set/Sets per Month
Port:
QINGDAO
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
XINGZHOU
Model Number:
CRS-300
Power:
Electronic
Usage:
Auto Testing Machine
color:
green
test diesel fuel injection pump:
1-12 cylinder pumps
test common rail injector:
yes
test piezo injector:
yes
test common rail pumps:
yes
test EUI EUP:
yes
languages:
chinese english spanish russian italian
Packaging & Delivery
Packaging Details
packing in wooden case
Delivery Time
within 20 days

CRS-300 Multifunctional COMMON RAIL SYSTEM TEST BENCH

Advanced common rail test system mounted on the traditional test bench, multi-use of one machine, can test not only common rail pump& injector but also traditional pump. Excellent quality and stable in performance, is the ideal choice for you



>>>>Technical Parameters:

Output power

11KW,15KW,18.5kw 22kw

Pressure

0~2000 bar

RPM

0~3500

Size

208*175*80(cm)

Weight

1280 kg

>>>>Features:

1.Controlled by industrial computer;

2.Windows XP operating system;

3.Can test piezo injectors

4,can test EUI/EUP

5.test HP0 two valves pumps.

6.with full database for bossch,densso,delphii,siemenss and eui/eup injector and pump.

7. test mechanical pumps, common rail pumps, common rail injectors, eui/eup.



>>>>>Common Rail Pump Test:

1.Test BOSsCH CP1/CP2/CP3, DELPHII CRSP, DENsSO HP0/HP1/HP2/HP3/HP4, SIEMENS DCP pump and so on.

2.Measure the feeding and return volume, pump chamber pressure, feeding pressure, check sealing performance, and functions of ZME valve.



>>>Common Rail Injector Test:

 Test BOSsCH, DENSsO, DELPHII ,SIEMES injectors and so on.

1 Test up to 4 pcs injectors at any one time.

2 Automatic high-pressure cleaning.

3Test the oil injection and oil return under the circumstance of sealing, pilot injection, idle operation, full load.

4 Create, edit, view, save test plans easily.

3 both solenoid and piezo injectors testing



>>>Mechanical Pump Test:

1.can test all the rotativa and line pumps,ve pumps and so on.

2.Up to 12 cylinders pump testing.

3.with temperature control system

4.fuel and pump air pressure control system

5.digital controller control the pump speed,fuel temperature,counting and so on.



>>>EUI EUP Test:

can test EUI EUP

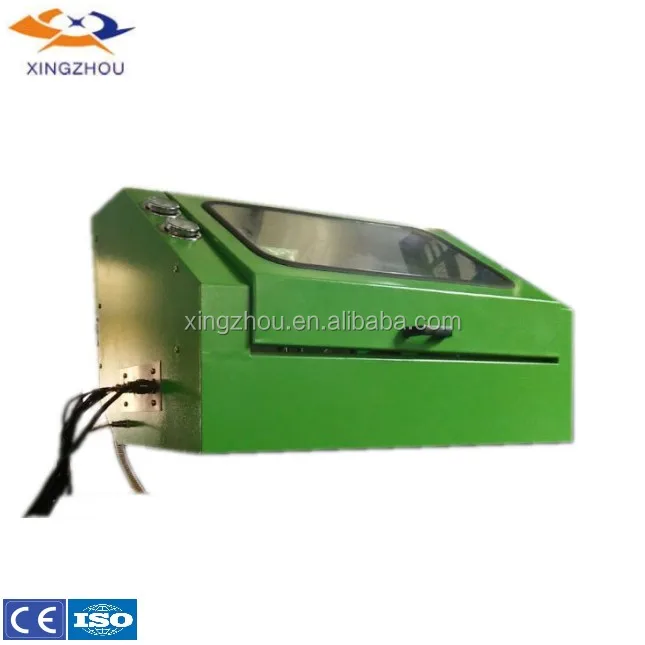

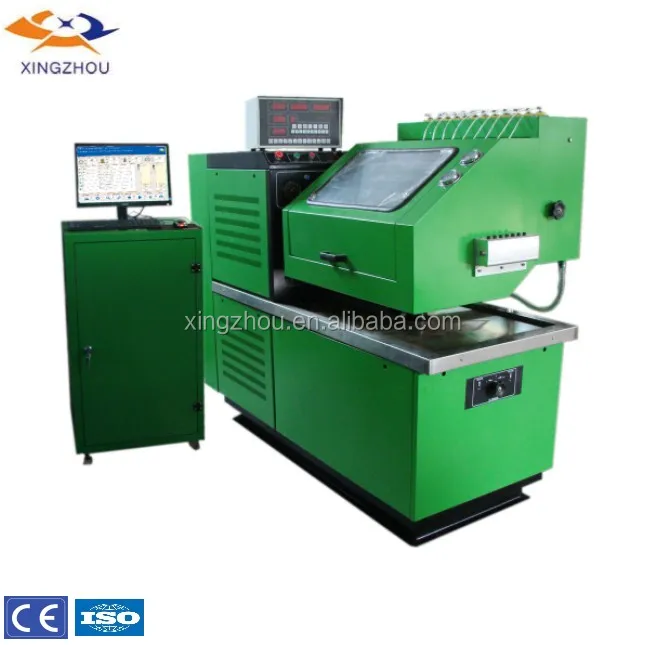

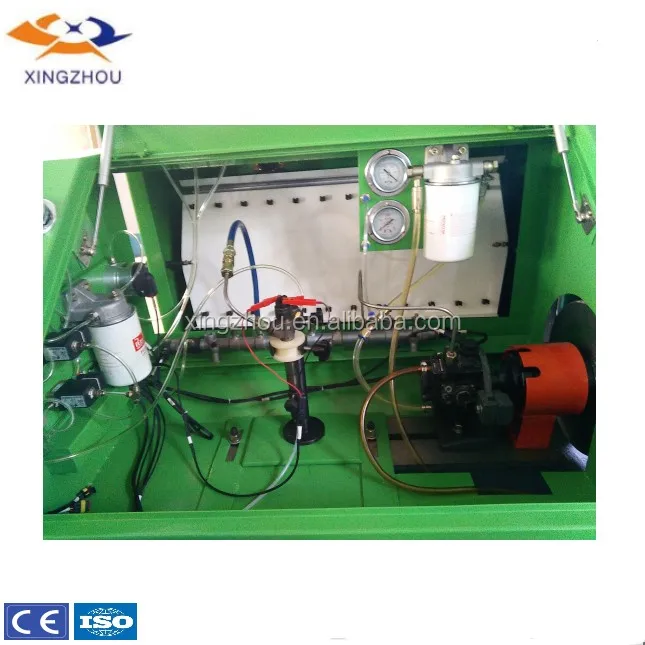

>>>>PRODUCT SHOW:
