CRS708 6 cylinders diesel common rail injector pump test bench EUI EUP HEUI stand

FOB Reference Price:Get Latest Price
US $7,800-9,000 / Sets | 1 Set/Sets common rail system test bench (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Xingzhou
Model Number:
CRS708
Power:
Electronic
Usage:
Auto Testing Machine
piezo injector test:
yes
EUI/EUP test:
yes
HP0 pump test:
yes
Certificate:
CE,ISO
injector quantity:
6 pieces
test injectors:
1 or 6 pieces
warranty:
3 years
rail pressure range:
0~2200bar
rail pressure accuracy:
2mpa
bos/ch injector code:
yes
SupplyAbility
SupplyAbility:
5000 Set/Sets per Month common rail pump test bench
Packaging & Delivery
Packaging Details
wooden case with accessories for test
Port
Qingdao
Lead Time :
Shipped in 20 days after payment
Video Description

   6 Cylinders Diesel Common Rail Injector &Pump Test Bench EUI EUP HEUI Test Bank



 >>>>>>SPECIFICATIONS:



CRS708 Common Rail Pump&Injector Test Bench can not only do the  commom rail pump test but also do the common rail injector test(solenoid and piezo ), which is applied to BOS/CH, DENS/O, DELP/HI,SIEME/NS,CA/T,VOLV/O,Cumm/ins and so on.





>>>>MACHINE FEATURES



 1.Industrail human-machine interface



2.Windows XP operating system

 with Chinese, English and Russian Italian Spanish Portuegue 6 operation languages.



3.Automatic temperature control





4.Driven by BOS/CH CP3 pump



5.DRV wave pressure control.




6.High accuracy import flow sensor.




7.Transparent safety protection.

8. with Bosc/h,Den/so,De/lphi,Sie/mens, EUI/EUP HEUI thousands of test data inside.

9. BOS/CH injector encode

10. Training is offered if customer come to our factory to check the machine.

11. Other design or improvement idea on the machine, can feedback to us.







 >>>FUNCTIONS:



 1)Common Rail Pump Test:

Function:

1. Test BOSC/H CP1/CP2/CP3/CP4, DELP/HI CRSP, DENSO HP0/HP1/HP2/HP3/HP4, SIEM/ENS DCP ,CA/T 320D pump and so on.

2. Measure the feeding and return volume, pump chamber pressure, feeding pressure, check sealing performance, and functions of ZME Valve.

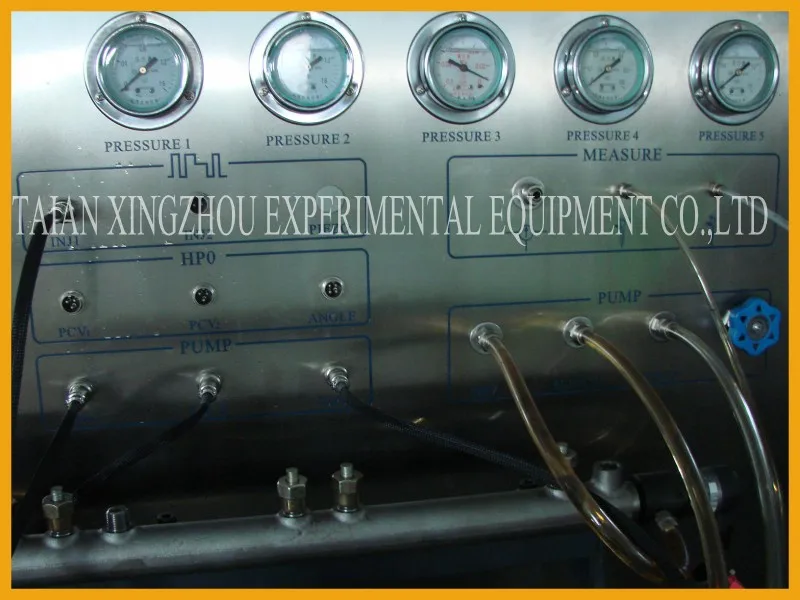

3.Can test two-valves electrical pumps,such as De/nso HP0 pump.




2)Common Rail Injector Test:

Test BOSC/H,D/ENSO, DEL/PHI ,Siemens, EUI injector and so on.(both solenoid and piezo )



Function:

1. Test up to 6cps injectors at any one time as below picture


2. Automatic high-pressure cleaning is for repairing the fault by dirty diesel oil.

3. With high accuracy import flow sensor, automatic test the oil injection and oil return under the circumstance of cleaning, leaking, full load, pre-injection, idle and mid-speed test items.

4.Self-learning ability, automatic create new plans by testing new injectors; view, create, edit, save test plans easily.

5. For solenoid and piezo injectors both can test.

6. BOSCH injector encode.



3)EUI/EUP Test:

1. Can test EUI/EUP(with matching cam box, sensor and adapters)

2.EUI/EUP data can also edit by the customers himself.

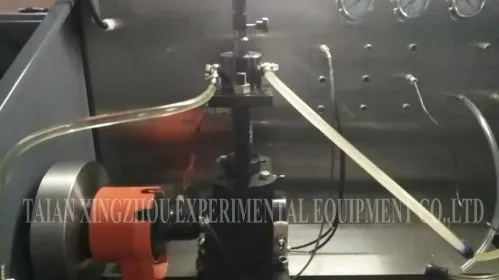

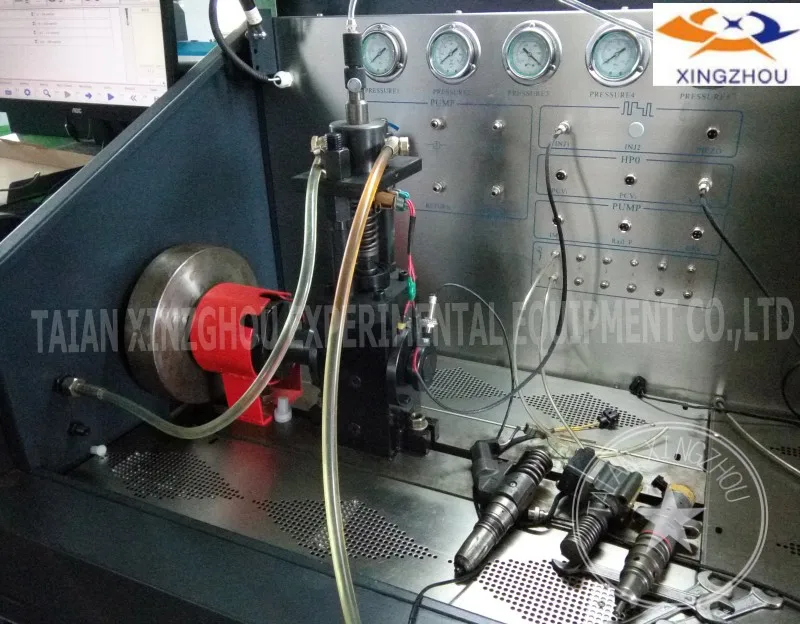

EUI/EUP test picture as below:




(4)HEUI test

test CA/T C7 C9 HEUI.



>>>>>TECHNICAL PARAMETERS:



Voltage

3 phase 380v or 3 phase 220v (for choice)

Power

11kw, 15kw,18.5KW,22KW(for choice)

Speed

0~3000n/RPM

Pressure

0~2200 bar

Fuel Accuracy

<5u

Working Temperature

-50~70℃

Language

English/Chinese/Russian/Spanish/Italian/Portuguese

Pressure control range

±0.2MPA

Flow sensor accuracy

±0.05%

Size

188*90*155cm

Weight

900kg

Package

Wooden case

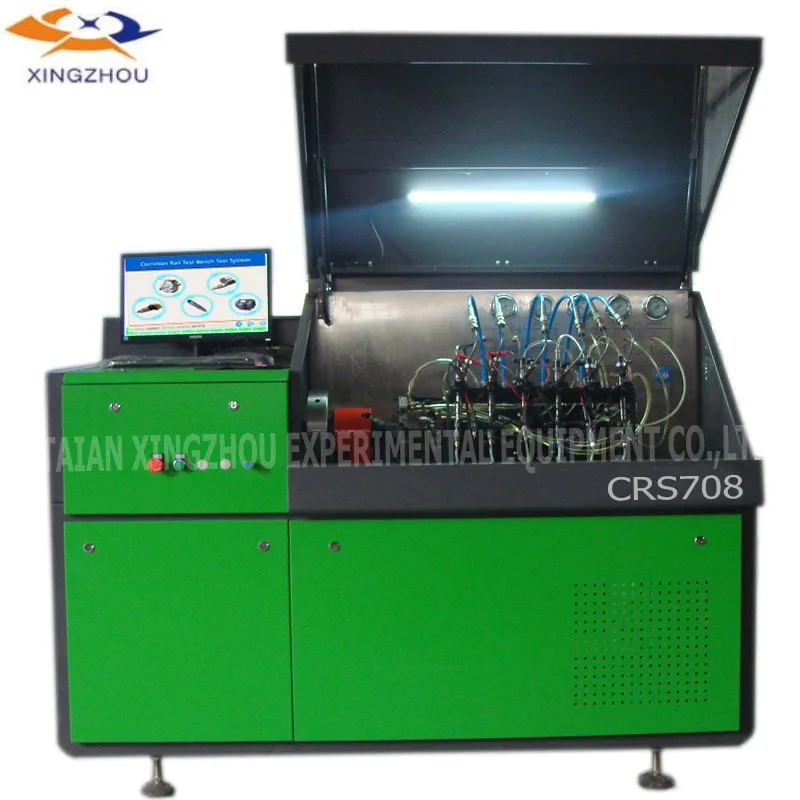

>>>>>PRODOCT SHOW:

bosch test bench.jpg


 CRS708 (3).jpgCRS708 (2).jpgCRS708.jpgCRS708 (4).jpg





 TO know more common rail system test bench, click below link to check:

https://xingzhou.en.alibaba.com/?spm=a2700.details.shnsopsi9.1.305bef9eaaamcr











>>>>>OUR ADVANTAGES:

1.About 15 year production experience, mature technological design and developing ensure us to offer customers high quality products of CE,ISO certificate

2.Factory manufacturer, save much middle deal cost, can offer you good service with competitive price.

3.Products has exported to many countries over the sea, enough business experience for customer on details such as payment and transportation!!!
