2018 new 12PSB mini 8 cylinder diesel fuel injection pump test bench

FOB Reference Price:Get Latest Price
US $2,600-3,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
300 Set/Sets per Month 12PSB-MINI pump test bench
Port:
Qingdao
Report Suspicious Activity
Overview
Quick Details
Type:
Engine Analyzer
Voltage:
220V 380V
Power:
7.5KW 11KW 15KW
Certification:
CE ISO
Place of Origin:
Shandong, China (Mainland)
Model Number:
12PSB-MINI
Warranty:
3 Years
color:
bosch green
weight:
550kg
output power::
5.5kw 7.5kw,11kw,15kw
certificate:
CE ISO
temperature control:
±2
warranty:
5 years
fuel filter:
yes
language:
chinese english russian
Packaging & Delivery
Packaging Details
packing in wooden case
standard fitting tools with the machine
Delivery Time
within 12 days after received te payment

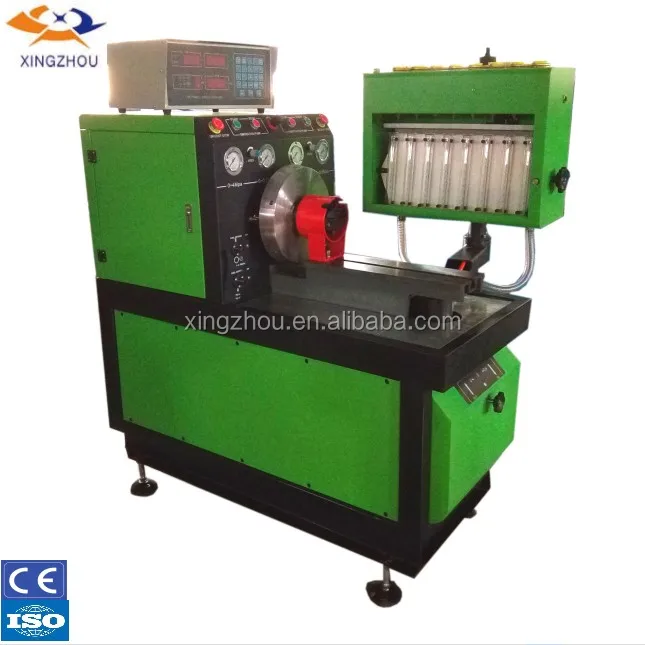

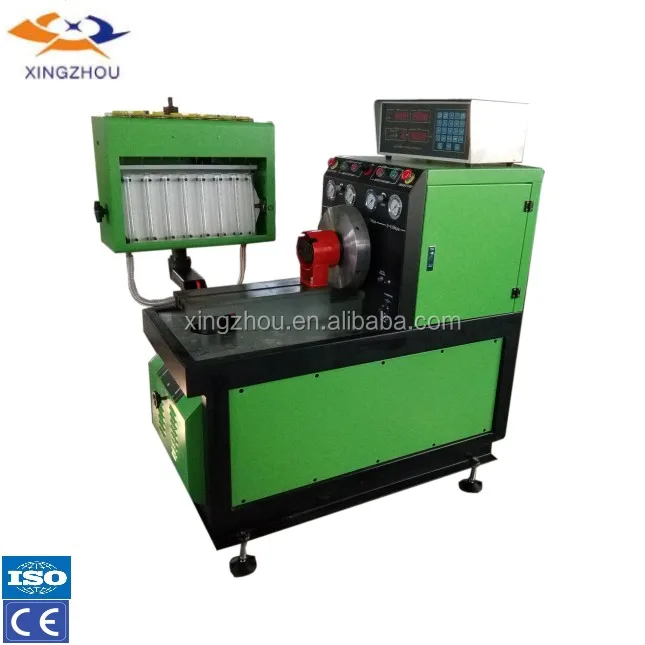

2018 new 12PSB mini 8 cylinder diesel fuel injection pump test bench



>>>Technical parameters:



Electronical supply(3-Phase/single phase)380V,220v/50HZ
Interaxe height125mm
Graduates45CC or 150CC
Volume of fuel tank60L
DC.Supply12/24V
Feeding fuel pressure(Low):0-0.4Mpa   (High):0-4Mpa
 Range of speed  +/-4000RPM
  Flywheel inertia  :0.8KG.. M2
   language  engilish,chinese,russain
 net weight 550kg



 >>>Features:



1.displayed by digital,similar function with Bossch 619,temperature control system

2.Test-bed using static plastic casing, scratch resistance wear resistance, anti-aging novel structure, rational layout, beautiful shape, installation convenient operation, etc.




>>>Functions:

 1.Testing 1-8 cylinders fuel injection pump.

2. Measuring each cylinder delivery at any speed.

3. Checking of each cylinder injection timing with static .

4.check the sealing injection pump body.

5.check the mechanical governor.

6.check the pneumatic governor.

7.check the vacuum capacity of governor.

8.check the pressure compensators.

9.measure the internal pressure of distributor pump body.

10. test the electromagnetic valve of distributor pump.

11.check the transfer pump.

12.check the reflux delivery of distributor pump body.

13.check the advance angle of advance device.

14.oil lubircation function(optional)

15.travel of tooth bar test function(optional)



>>>Packing

8 standard injectors, 16 glass tube, one set pump block, fuel pipe, test bench light and so on.



 >>>Product Show:





Hot Questions:



1.Does your company a distributor or a manufacturer?

Our company is specialized in the producing of the diesel fuel injection test bench by ourselves for more than 10 years, we have our factory,is the manufacture and so can provide you the best price.



2.Is the operation easy?How about the instructions?

Dear customer,we design the machine for the beautiful style and easy operation. We provide the operation instructions with the machine even in your language.And also can provide the operation vedio.



3.Payment method and the delivery time.

We accept bank transfer,Western Union or Paypal. Accept L/C,TT.

The machine will be produced as soon as possible when receive the payment,often within 8 days.



so welcome to your inquiry!!!
