Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Xingzhou
  • Model Number: CR-XZ816
  • Power: Electronic
  • Usage: Auto Testing Machine
  • piezo injector test: yes
  • EUI/EUP test: yes
  • HP0 pump test: yes
  • Certificate: CE,ISO
  • flow accuracy: 5u
  • test injectors: 1 piece or 4 or 6 pieces
  • warranty: 3 years
  • rail pressure range: 0~2200bar
  • rail pressure accuracy: 2mpa
  • bosch test bench: yes

Packaging & Delivery

Packaging Details wooden case
Delivery Time within 15 days after advanced payment

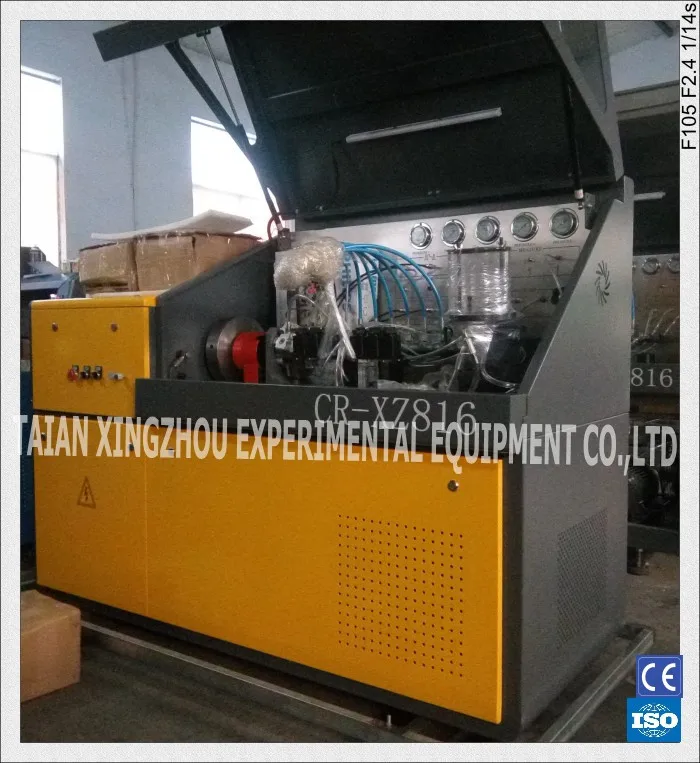

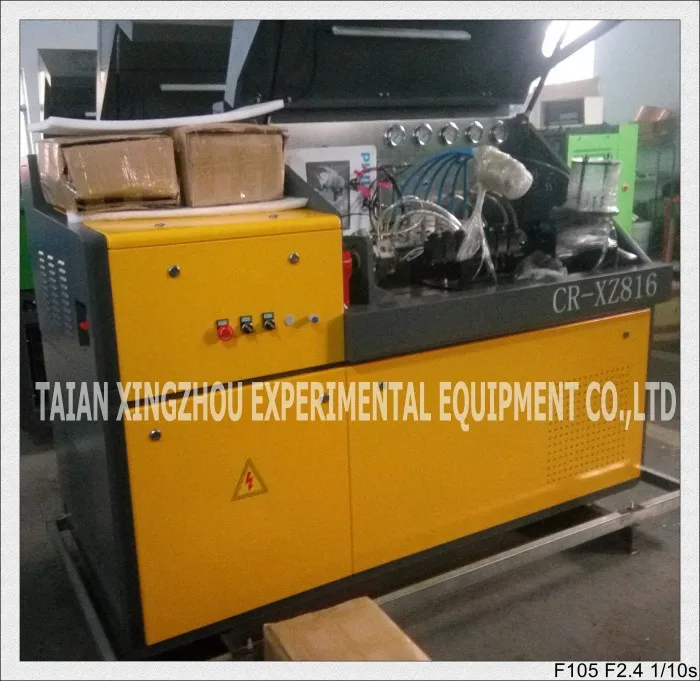

  High-pressure diesel bosch common rail injector &pump test bench/stand/bank CR-XZ816



CR-XZ816 Common Rail Pump&Injector Test Bench can not only do the  commom rail pump test but also do the common rail injector test(solenoid and piezo ), which is applied to BOSCH, DENSO, DELPHI,SIEMENS,CAT EUI/EUP,Cummins and so on.





 1.Industrail human-machine interface


2.Windows XP operating system

 with Chinese, English and Russian three operation languages.


3.Automatic temperature control



4.Driven by BOSCH CP3 pump


5.DRV wave pressure control.


6.High accuracy import flow sensor.

7.Transparent safety protection.

8. with Bosch,Denso,Delphi,Siemens, EUI/EUP thousands of test data inside.






 1)Common Rail Pump Test:


1. Test BOSCH CP1/CP2/CP3, DELPHI CRSP, DENSO HP0/HP3/HP4, SIEMENS DCP pump and so on.

2. Measure the feeding and return volume, pump chamber pressure, feeding pressure, check sealing performance, and functions of ZME Valve.

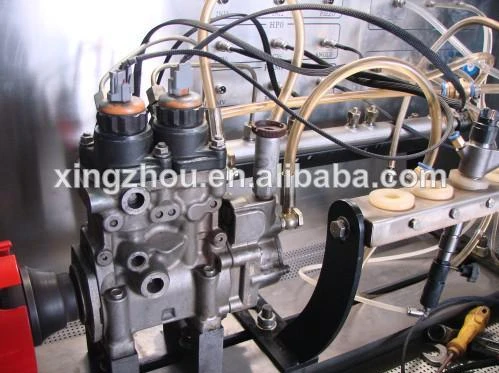

3.Can test two-valves electrical pumps,such as Denso HP0 pump.


2)Common Rail Injector Test:

Test BOSCH,DENSO, DELPHI ,Siemens, EUI injector and so on.(both solenoid and piezo )

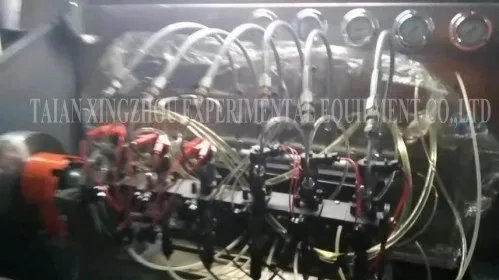

1. Test up to 6cps injectors at any one time as below picture

2. Automatic high-pressure cleaning is for repairing the fault by dirty diesel oil.

3. With high accuracy import flow sensor, automatic test the oil injection and oil return under the circumstance of cleaning, leaking, full load, pre-injection, idle and mid-speed test items.

4.Self-learning ability, automatic create new plans by testing new injectors; view, create, edit, save test plans easily.

5. For solenoid and piezo injectors both can test.



3)EUI/EUP Test:

1. Can test EUI/EUP(with matching cam box, sensor and adapters)

2.EUI/EUP data can also edit by the customers himself.

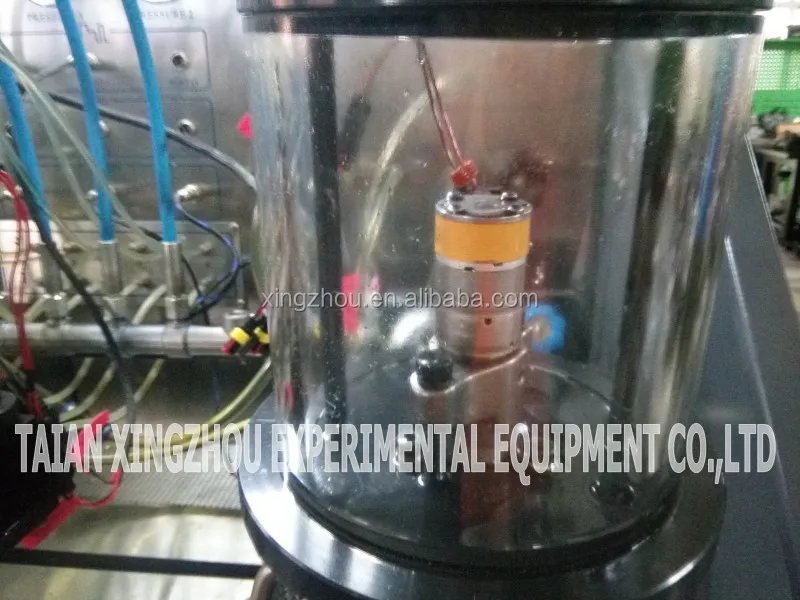

EUI/EUP test picture as below:





can test HEUI such as CAT C7, C9.





3 phase 380v /440v or 3 phase/single phase  220v (for choice)


11kw, 15kw(for choice)




0~2200 bar

Fuel Accuracy


Working Temperature




Pressure control range


Flow sensor accuracy







Wooden case










1.About 15 year production experience, mature technological design and developing ensure us to offer customers high quality products of CE,ISO certificate

2.Factory manufacturer, save much middle deal cost, can offer you good service with competitive price.

3.Products has exported to many countries over the sea, enough business experience for customer on details such as payment and transportation!!!



 Hot Questions:


1.Does your company a distributor or a manufacturer?

Our company is specialized in the producing of the diesel fuel injection test bench by ourselves for more than 10 years, we have our factory and so can provide you the best price.


2.Is the operation easy?How about the instructions?

Dear customer,we design the machine for the beautiful style and easy operation. We provide the operation instructions with the machine even in your language.And also can provide the operation vedio.


3.Payment method and the delivery time.

We accept bank transfer,Western Union or Paypal. Accept L/C,TT.

The machine will be produced as soon as possible when receive the payment,often within 8 days.


welcome to your inquiry!!!
